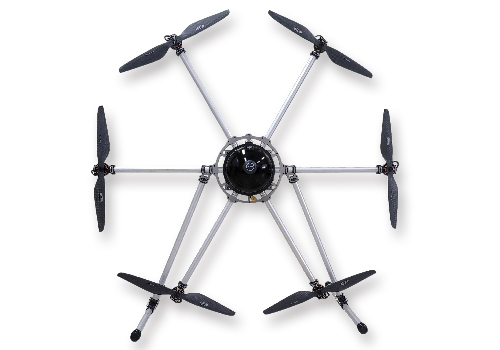

Conspicuous MK.I

Meet The Products of Fourthwave

DESCRIPTION

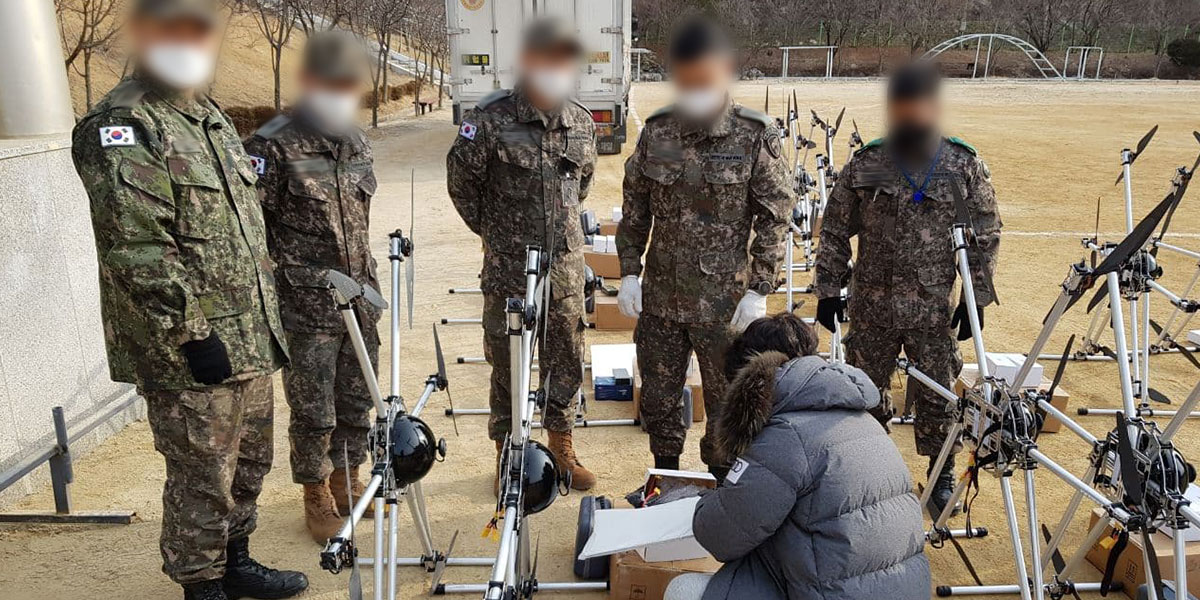

The Next Generation Air Defense Radar Tracking Training Drone Domestically R&Ded, Designed, Produced, Manufactured, And Deployed In The ROKArmy.

High RCS (Radar Cross Section) Specified Design Is Applied And 65-Min Max. Flight Time Is Established.

Optimized Customizable Drone Based on Pixhawk FC For Various Missions, Performances, And Functions.

FEATURE

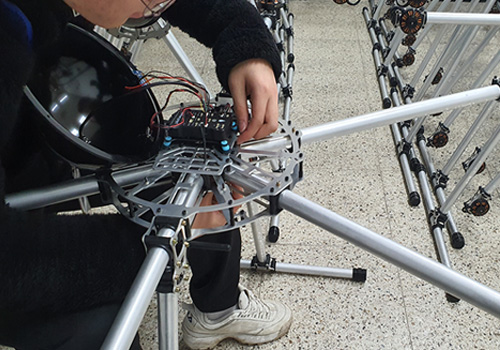

Direct Manufactured Fuselage For 100 % Domestic Productions And Technical Support Including Maintenance.

Synthetic Duralumin Is Used For High-Performance RCS.

Versatile Part Design Is Applied for Maximizing Compatibility.

Novel Material, Durethane Eco (Reinforced Polyamide PA6) Is Used For Ultral Lightness And Eco-Friendliness.

Official RCS Test Certificate: X Band And Ku Band

	Content
Specification	In Flight Mode : 1280 X 1280 X 750mm In Storage Mode : 580 X 1280 X 1280mm
Weight	Empty Weight : 3.8kg Max. Take-off Weight : 11.8kg
Max. Flight Time	65 ~ 100 minutes
Max. Speed	72km/h (Sea Level & No Wind Condition)
Power Pack	Motor : EL500BM X 6ea ESC : EL5008E 40A X 6ea
Battery	Li-Po or Li-Ion
COMM. Control	6ch~14ch RF COMM & LTE 900mhz~5.8G / LTE
FC	Pixhawk 1, Pixhawk V5+, or Equivalent
Flight Range	5.8RF 15km
LTE COMM.	Unlimited
